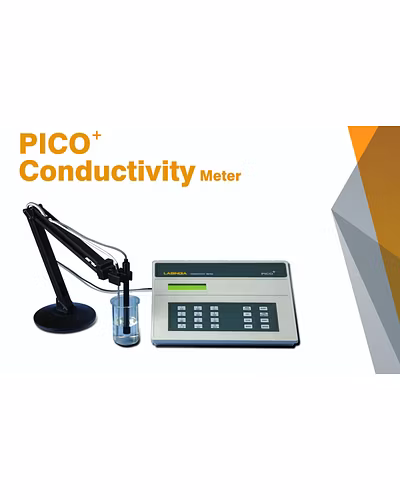

Pico Conductivity Meter

Price upon request

ITC-HSN:	90278990
Minimum Order Quantity:	1
Accept Small Orders	Yes
Fulfilment Capacity (Per Month):	10
Country Of Origin:	India

Write a Review

Features:

Large 20×2 backlit LCD display with dialogue mode operation.

Measurement modes: Conductivity, TDS, Salinity, Temperature (simultaneous display).

Wide measurement range: 0.01 µS/cm to 199.9 mS/cm (cell constant 0.1, 1.0, or 10).

High resolution: 0.01 (displayed).

Temperature range: 0 to 150°C with ±0.1°C accuracy (using RTD Pt100).

Temperature compensation: Automatic or manual.

Stores up to 40 readings with calibration data, date, and time stamp.

Calibration reminders and password protection for secured data.

Non-volatile memory ensures data retention.

Automatic calculation of cell constant with standard solution.

Adjustable temperature coefficient via built-in TEMP.CO key.

Built-in real-time clock (RTC) for time/date display and reports.

User authentication: CUSTOMER NAME/Memo entry, password protection.

Error indication: Invalid key operation, beeper alerts.

PC compatibility with optional software for downloading data.

Printer output for calibration and test reports.

Technical Specifications:

Conductivity Measuring Range: Auto-ranging 0.01 µS/cm to 199.9 mS/cm

Resolution: 0.01 (displayed)

Temperature Range: 0–150°C

Accuracy: ±0.1°C; Relative accuracy ±0.2%

Inputs: 2-Banana socket for conductivity electrode, 1-ATC-PT100

Report Format: Calibration report, stored readings of Conductivity/TDS/Salinity

Output: Parallel port for printer, PC connectivity

Environmental conditions: Indoor, Ambient ≤45°C, RH ≤90% (non-condensing)

Power: 230 V AC ±10%, 50 Hz, 10 W

Dimensions: 305 × 220 × 70 mm (W × D × H)

Weight: 2.2 kg
