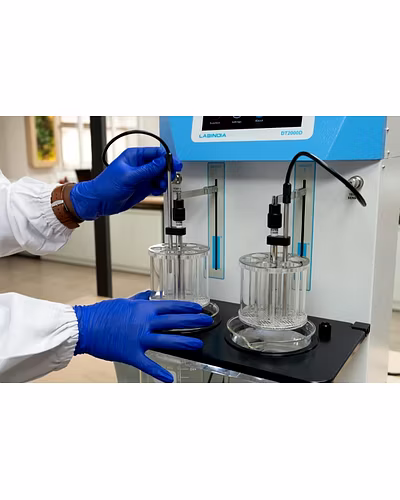

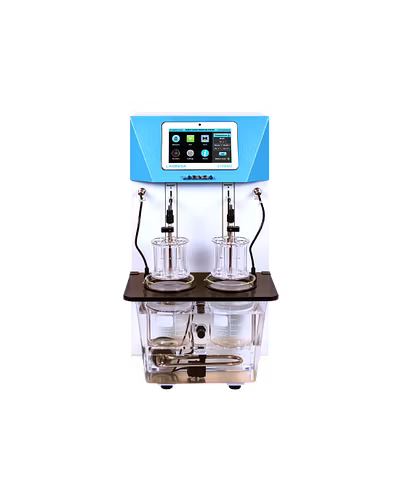

Tablet Disintegration Tester - Dual Drive

Salient Features:

7" Colour High-resolution display with touch screen interface & user interactive software.

Designed to meet specifications of USP, IP, BP, and other Pharmacopoeias.

DT2000D features a dual timer (baskets will have individual timers) and a dual drive (each basket is driven by an individual drive).

Designed for production and quality control of normal, plain, coated tablets & gelatin capsules.

Provision to identify disintegrated tablets with laser-marked numbers on the basket assembly.

Allows two different sample types to be analyzed simultaneously.

Capable of dual basket run completion.

Practically unlimited test reports with date & time stamp.

External temperature sensors available for individual beakers.

Disintegration time for individual tablets can be recorded.

Programmable Temperature & Time settings.

Park out facility for basket after run completion.

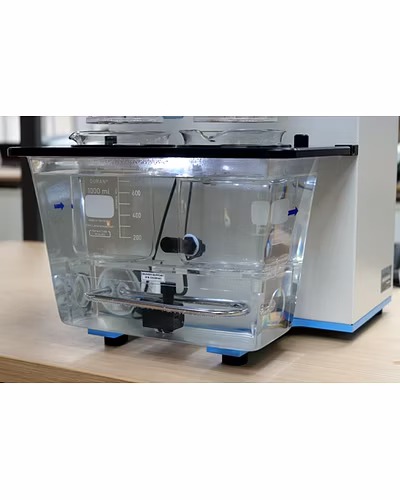

Moulded acrylic water bath with illumination for visibility.

Low water level audible and visible alert for safety.

Specifications:

Drive Dual Drive for 2 baskets with individual timer

Dip Speed: 30, ±1 DPM

Stroke Length: 55, ±2 mm

Waterbath Temperature Range: Ambient +5 to 55°C

Waterbath Temperature Accuracy: ±0.2°C

Waterbath Circulation: Immersion Pump

Beaker Volume: 1000 ml

Basket: - 2×6 test positions (10 mesh) USP type A (Optional 40 mesh)

              - 2×3 test positions (10 mesh) USP type B/ Bolus 3 Basket

              - 2×1 test positions (10 mesh) USP type B/ Bolus 1 Basket

Fluted Disk: 6 per basket for USP type A

Test Mode: Programmable Time up to 99:59 (HH:MM); Display Format 99:59:59

Display: 7" Capacitive touch screen colour display

User Management: 1 admin, 50 users with multiple rights selection

Number of Methods: 100 test methods

Report Storage Built-in SD Card

Printer Connectivity: Centronics Parallel Port for Dot matrix/desk jet printer

Serial Interface: RS232C-2 for PC Connectivity

Power Requirement: 230 VAC / 50 Hz, 325 W

Environmental Operating Conditions: a) Indoor use

                                                                  b) Temp: Ambient to 45°C

                                                                  c) Humidity: 20% to 80%

                                                                  d) Altitude: up to 2000m

Dimensions (Approx.): 330 x 345 x 580 mm (W x D x H)

Shipping Weight (Approx.): 22 kg
