UV-Vis Spectrophotometer - Touch Screen

Price upon request

  • Product is not available

  • -
    +
ITC-HSN: 90273020
Minimum Order Quantity: 1
Accept Small Orders Yes
Fulfilment Capacity (Per Month): 20
Country Of Origin: India
Write a Review

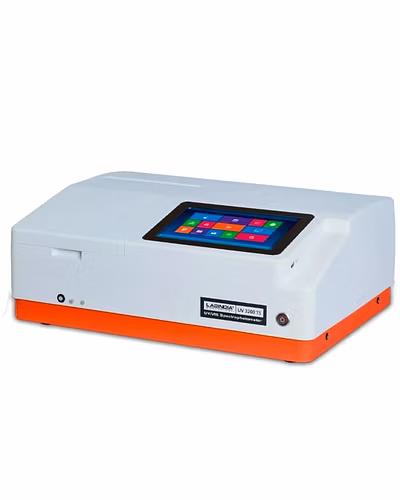

Double Beam Optical System - Model UV3200 TOUCH SCREEN
Double Beam Optical System with 1200 l/mm grating having low stray light and the optimized design to ensure higher measurement accuracy of the instrument.
The All- aluminium die-casting base make the instrument stronger and more durable. High resolution TFT colour LCD touch screen provides excellent display effect and simple operation with built-in computer (2GB memory/ 64GB SSD storage, 178 degree full view, 16 million colours, high resolutions, 10.1 inch IPS colour LCD touch screen, capacitive 10-point touch control) provides excellent display effect, simple operation and good scalability, wide sample room, suitable for 5-100mm sample cell holders and other accessories, start-up self-calibration system and warm-up countdown, automatically move the wavelength to the set position, and automatically do zero, connect with a printer directly and output measurement results, connect with a PC by USB, and control the instrument by software, to enrich and expand the application. Support upgrading firmware by USB storage directly.
The software design complies with requirements of 21CFR stipulated in pharmacopoeia and has perfect GLP/GMP functions, which can effectively trace and manage the instrument performance and measurement data.

  • Additional Information

    Optical system: Double beam with Czerny-Turner Monochromator

    Light Source: Tungsten and Deuterium Lamp, pre-aligned

    Spectral Bandwidth: 0.5, 1, 2 4nm

    Wavelength range: 190 to 1100nm

    Wavelength Accuracy: ± 0.3 nm Full range 190 -1100nm

    Wavelength Repeatability: 0.1nm

    Wavelength Resolution: 0.1nm

    Scanning speed: 1 to 3000 nm/min, Variable

    Photometric Range: -4 to 4.0A

    Photometric Accuracy 0.5A ± 0.002A

    Noise: 0.000016 Abs RMS @500 nm

    Drift: <0.0002Abs/H @ 500 nm

    Baseline Flatness ± 0.001 Abs

    Stray light: 0.02 @ 220nm KCl 198nm=1%T

    Optional Accessory: Specular Reflection Accessory, Integrating Sphere 60mm/ 100mm Peltier solid sample holder, long path cell holder etc.

    Photometric mode: Photometry, Quantitation, Spectrum, Kinetics

    Detector: Dual Silicon photodiode

    Wavelength Slew rate: 6500nm/min

    Sample Cell Holder: Pair of 10mm cell holder, upgradable to automatic 8 cell changer

     Display: 10.1 inch IPS colour LCD touch screen, capacitive 10-point touch control, 178degree full view, 16 million colours, high resolution (1280 X 800)

    Software: Complies with requirement of 21 CFR Part II, with GLP/GMP functions, file management functions.

    Storage 64GB (built-in), unlimited expansion (USB storage, SD card, network storage device)

    Interface: USB-A (extensible; Connect USB printers, storages, mice, keyboards and other peripherals) X 3. USB B (PC)x1, RJ 45 (Ethernet) VGAx1, HDMIx1, Bluetooth, WiFi

    Dimension: (W x D x H): 600 x 450 x 200 mm

    Weight: 18 Kg
